Guitar Preamp Tone Explained

by Phil Taylor

Blackface preamp

If all is well and good with the world then you, your guitar and amp should work together in harmony to create those inspirational rock guitar tones you heard on the radio. After all, you and your gear are playing on the same team, right? Your amp reacts to the signal from the guitar pickup; the pickup reacts to the way you pick the strings; and, in turn, you react to the sound you hear coming from the amp. In fact you guys should be the tightest of tight-knit teams or, to put it in engineering terms, a closed loop. If this is so then, by implication, the sound coming from your amp will affect your playing. Yes, you read that right: your amp actually determines how good a musician you are.

If it’s making the right noises, it will enable your playing to soar to dizzying heights; if not, that elusive dream tone will be forever out of reach, keeping you well and truly grounded. To put it another way, your amp—and your guitar—sets a limit on how far you can go, that is how far you will be able to develop your style. Of course putting miles on the clock practicing is essential to becoming a better player, no one questions that, but it’s also important to find a good match—a perfect marriage—between gear and musician. And the same applies to that vital coupling between guitar pickup and power amp: the preamp. So let’s take a closer look at the preamp’s high voltage, vacuum tube circuitry, see where the magic happens and how it shapes the sound of the electric guitar.

What’s Inside?

Your tube amp is made up of a preamp and power amp section. Figure 1 on the right shows a typical tube preamp stage. This type of circuit is called a ‘grounded cathode‘ gain stage and is found in many classic Fender amps, including their Deluxe and Twin Reverb ‘Blackface’ and ‘Silverface’ amps manufactured in the 1960s and 70s. This circuit is also a standard building block for amplifier circuits and is used by many other amp manufacturers including Soldano, Boogie and the British amp manufacturer, Marshall. The grounded cathode amplifier turns a small voltage from your guitar pickup into a large voltage—it’s a voltage amplifier. With a 12AX7 tube in there this circuit gives about 30dB of voltage gain, with a 12AU7 expect about 15dB of gain. In a typical vintage amp this gain stage is followed by passive tonestack and then the power amp section, which amplifies current. Together, voltage and current amplification give power. The preamp and power amp sections both have an influence on the overall tone and feel of the amp.

tube_stage_320px
Figure 1 – Common cathode tube amplifer.

Tube Distortion

tube_clipping2_320px

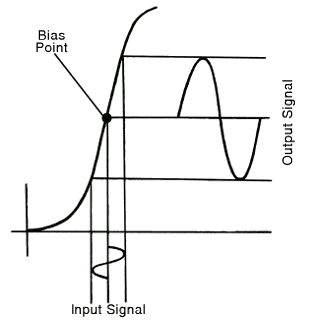

Figure 2 – Amplification of a signal.

Distortion is low in this type of amplifier circuit as the 1K8 cathode resistor sets the bias point right in the middle of the tube’s linear region as shown in Figure 2. Figure 2 shows the ‘transfer function’ or ‘load line’ for this amplifier. The small input voltage (x-axis) controls anode current (y-axis) flowing through the tube to give amplification. This centre biased amplifier section has the maximum threshold of clipping possible (highest headroom), that is where the grid can be fed with the largest possible signal before clipping. Another way of putting it, is to say the input sensitivity of the stage is at its lowest (input sensitivity describes the input voltage required to drive the stage into the non-linear region on the curve and cause clipping). Consequently, this is a very clean sounding amplifier and introduces relatively little distortion into the signal—early guitar amp manufacturers weren’t striving to generate huge amounts of overdrive and sustain with their circuits, just amplify the signal so the guitar could be heard above the drums.

The non-linearity inherent in tubes means that there will always be small amounts of distortion introduced into the signal, even with a clean amp such as the Fender ‘Twin’. This is partly explains why a tube amp sounds warmer and has a more musical character than a solid-state amp. The sound of many great Rock ‘n’ Roll players such as Ritchie Valens, Buddy Holly and Chuck Berry were defined by amps with grounded cathode preamp stages. Although the preamp section of these amps is relatively clean sounding, the power amp section generates significantly more signal distortion, especially when the amp is cranked up. The distortion is the result of several factors including:

  • The power amp tubes entering the clipping region
  • The rectifier tube voltage sagging
  • The transformer core becoming saturated
  • The speaker cone resonances and/or break-up

This subject, however, is outside the scope of this article—so let’s get back to the preamp section.

Symmetrical Clipping

This preamp section can be made to distort (in a very pleasant way) if fed with a large enough signal and that’s exactly what guitarists did during the late 60s and early 70s. Players like Alex Lifeson, Jimmy Page and Robin Trower pushed their amps into distortion by placing a boost pedal before their rig (typically a wall of Hi-watt or Marshall tube heads feeding into 4 x 12 cabs!). Because the bias point of the first amp section is roughly in the middle of the load line, the guitar signal is clipped roughly equally on both sides—symmetrical clipping as shown in Figure 3.

tube_clippling1_320px

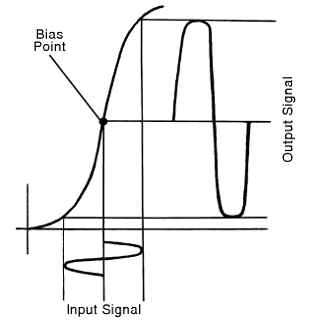

Figure 3 – Symmetrical clipping distortion.

Symmetrical clipping produces a mixture of odd and even order harmonics creating the classic rock distortion tone. What you’re hearing when you use a boost pedal is actually your tube amp distorting—that is, a significant amount of the tonal character of the overdrive tone is generated by the amp. Figure 4 shows a frequency analysis of a centre-biased 12AX7 being overdriven. The fundamental is a 440Hz sine wave (‘A’) and strong 3rd, 5th, 7th, etc harmonics are clearly present in the output signal. Even harmonics are also present, however at reduced amplitude in comparison to the odd harmonics. Although centre biased symmetric clipping distortion is beginning to approach a square wave, the rounded edges ensure that brittle-sounding high order harmonics are absent. Incidentally, a true square-wave is made up of a series of only odd harmonics—this is the kind of distortion produced by hard-clipping diode circuits found in opamp based stompboxes such as the Boss DS-1.

symmetric_tube_clipping_320px

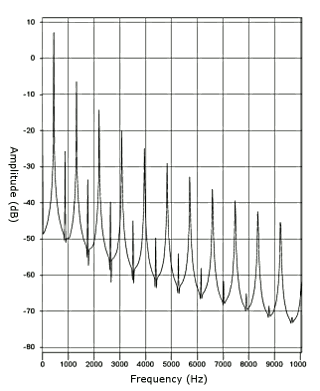

Figure 4 – Symmetrical clipping produces a signal with strong odd order harmonics.

Asymmetrical Clipping

It wasn’t long before designers began experimenting with multi-stage tube preamplifier circuits—pioneers of the art include Alexander Dumble, Randall Smith and Mike Soldano. Their amps contained several tube stages in series (typically four stages) to massively boost the input signal until it went outside the linear region of the tube. Additionally, by manipulating the bias point on the load line they could exercise a degree of control over the input sensitivity in each stage of the amp so that the signal clipped in a more controlled manner. Because the bias point is offset from the centre of the load line, the output signal clips to a greater extent on one half of the cycle than the other—this is asymmetric clipping. Reducing the value of the 1K8 cathode resistor causes more anode current to flow so that the tube runs physically hot. This shifts the bias point to the right-hand end of the load line and the output signal will be clipped on the positive cycle of the output signal—this is called grid current limiting and is shown in Figure 5. A moderate amount of hot biasing produces a smooth, warm and ‘bluesy’ drive, too much and the sound becomes more aggressive and ‘fuzzy’

tube_clipping3
Figure 5 – Hot Biased asymmetrical clipping distortion.
tube_clipping
Figure 6 – Cold Biased asymmetrical clipping distortion

The bias point can also be shifted to the left-hand end of the load line by increasing the value of the cathode resistor to reduce the current flowing in the anode—this is called cold biasing. This generates cut-off clipping on the negative cycle of the output signal producing a ‘crunchier’, ‘harder-edged’ distortion as shown in Figure 6. Cold biasing is used in many modern triode high gain tube amp designs as it adds rich, harmonic content giving a ‘heavier’ and ‘crunchier’ distortion tone.

Asymmetric clipping generates a signal rich in even and odd order harmonic overtones. The second harmonic is particularly strong (see Figure 7 below), which is almost certainly one of the reasons tube amps sound so musical—the second harmonic is exactly one octave above the fundamental. Both symmetric and asymmetric clipping occur in a multi-stage tube preamp and it will consequently produce a tone that is a complex mix of even and odd order harmonics. Designing an an amp is an art and involves a substantial amount of experimentation in the quest to discover the ideal biasing point, inter-stage tone-shaping and gain for each stage. The biasing point of each tube stage affects how the stages interact to produce distortion, ultimately defining the core tone of the amp—whether it is glassy clean, warm and bluesy, classic rock or creamy and sustaining.

asymmetric_tube_clipping_320px
Figure 7 – Asymmetrical clipping produces a signal that is rich in even and odd order harmonics.

Demonstrations of asymmetric and symmetric tube clipping distortion can be heard on the Blackbird vacuum tube preamp sound clips page.

In Conclusion

And that just about covers how the preamp boosts and shapes the tiny electrical signal coming out of your guitar jack. From the discussion it’s apparent that there’s a great deal of mojo happening in the preamp section. In fact, it could be argued that it has a more significant effect on shaping the sound of the guitar than the power amp section, even the speaker. The preamp increases the signal amplitude, squashes the dynamic range, adds additional harmonic content and modifies the frequency response. Now, where and how hard you pluck the strings⁠—in short, playing technique⁠—affects these things too, so much so, it’s often said that what makes you sound like you is you. This is true: the real magic of any great guitarist is in their hands, and mind… but the preamp is the key to setting that magic free.

This article was also published in Tone Quest Report magazine in March 2014.
